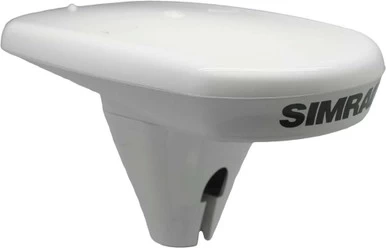

Simrad 000-12308-001 HS60 GPS Compass NMEA2000 (Cable Not Included)

The Simrad 000-12308-001 HS60 GPS Compass provides boaters with accurate heading and position data suitable for use with Simrad chartplotters, AIS transponder systems, autopilots, and radar. For applications such as autopilot, where precise heading information is required, the Simrad HS60 provides an all-in-one alternative to the traditional solution of a separate fluxgate compass and GPS receiver.

The HS60 GPS Compass combines a high-speed 10 Hz, SBAS-compatible GPS receiver with integrated gyro and tilt sensors to provide smooth and accurate heading, position, roll, heave, and pitch information to Simrad chartplotters, radar, autopilots, and AIS systems.

Simrad 000-12308-001 HS60 GPS Compass Features:

• Compass and GPS receiver in one
• Tracks heading, position, heave, roll, and pitch
• Suitable for use with Simrad autopilot systems
• 2° RMS heading accuracy with dual internal GPS antennas
• 1M differential positioning accuracy (using SBAS supports WAAS, EGNOS, MSAS & GAGAN)
• 3M positioning accuracy (GPS only)
• Maintains an accurate heading for up to 3 minutes during GPS outages
• Compact flush or pole-mounted design
• NMEA 2000 connectivity (NMEA 0183 optional)
• 10 Hz GPS Receiver
• Enhanced Positioning with SBAS
• Accurate Heading with Dual GPS Antennas
• Integrated Gyro & Tilt Sensors
• Simple Installation with NMEA 2000 Connectivity
• Reverse Polarity Protection: Yes
• Power Consumption: 2.0W nominal
• Power Supply (Supply Voltage): 8 to 36 VDC
• Grounding: Isolated to enclosure
• Humidity: 100% non-condensing
• Product Width: 129mm / 5.1in
• Product Depth: 259mm / 10.2in
• Product Height: 45mm / 1.8in
• Baud Rates: 4800, 9600, 19200, 38400, 57600, 115200
• Correction I/O Protocol: RTCM SC-104
• Data I/O Protocol: NMEA 2000 (Optional NMEA 0183)
• Serial Ports: 2 full-duplex RS232 or 1 NMEA 2000
• Compass Safe Distance [mm]: 300
• Pitch/Roll Angle: 2°
• Rate of Turn: 90°/s maximum
• Receiver Type: GPS L1 Compass
• Heading Accuracy: 2° RMS
• Heading Fix:
• Connectors: NMEA 2000 Connector: 5 Pin Male Micro Connector
