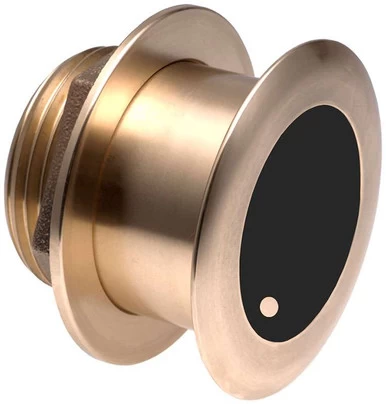

Simrad 000-11063-001 B175L-20 Low CHIRP Transducer – 20? Tilt

The bronze, thru-hull Simrad 000-11063-001 B175L-20 Low CHIRP Transducer is ideal for sportfishing and commercial boats up to 25ft (8M) in length. The 000-11063-001 is a single-channel transducer that offers only Low CHIRP, making it perfect for depth penetration.

The Simrad 000-11063-001 B175L-20 is able to measure both temperature and depth in a single package, and easily installs with just one connection to your multifunction display or echosounder module. CHIRP technology delivers depth penetration and target resolution superior to standard single-frequency sonar by utilizing pulsed transmissions across a range of frequencies. This Simrad transducer is able to give you a clear view of the area under your boat and deliver very accurate depth readings by tilting ceramic elements inside the housing, aiming the beam straight down without needing a fairing block.

Simrad 000-11063-001 B175L-20 Low CHIRP Transducer Features:

• Up to 1200M (4000′) range
• Thru-hull with bronze housing
• 32-21° beam width
• 40-60 kHz Low CHIRP
• 7 internal broadband ceramics
• Suitable for wood and fiberglass hulls
• Ideal for sportfishing and commercial boats up to 25ft (8M)
• Designed to be used in conjunction with Simrad NSS evo2 displays, the SonarHub sounder, and the BSM-3 broadband sounder.
